Regular & Reverse airflow models available: With regular and reverse airflow models available, the D30 fan allows for the perfect configuration without obstructing the fan blade lighting effect.

Easy and clean fan linking system: Linking multiple fans together reduces cable clutter considerably while the screw cover plates, and bridge connectors make multiple D30 fans work as one clean unit.
The D-RGB lighting is integrated and visible from all sides of the D30-120 fan. The blades reflect the light coming from the Halos lighting ring inside the frame. Compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.
30 mm of performance: On a radiator or behind restrictive mesh/dust filters, the 30 mm thick frame and blades provide plenty of air pressure to keep things cool.

Description:

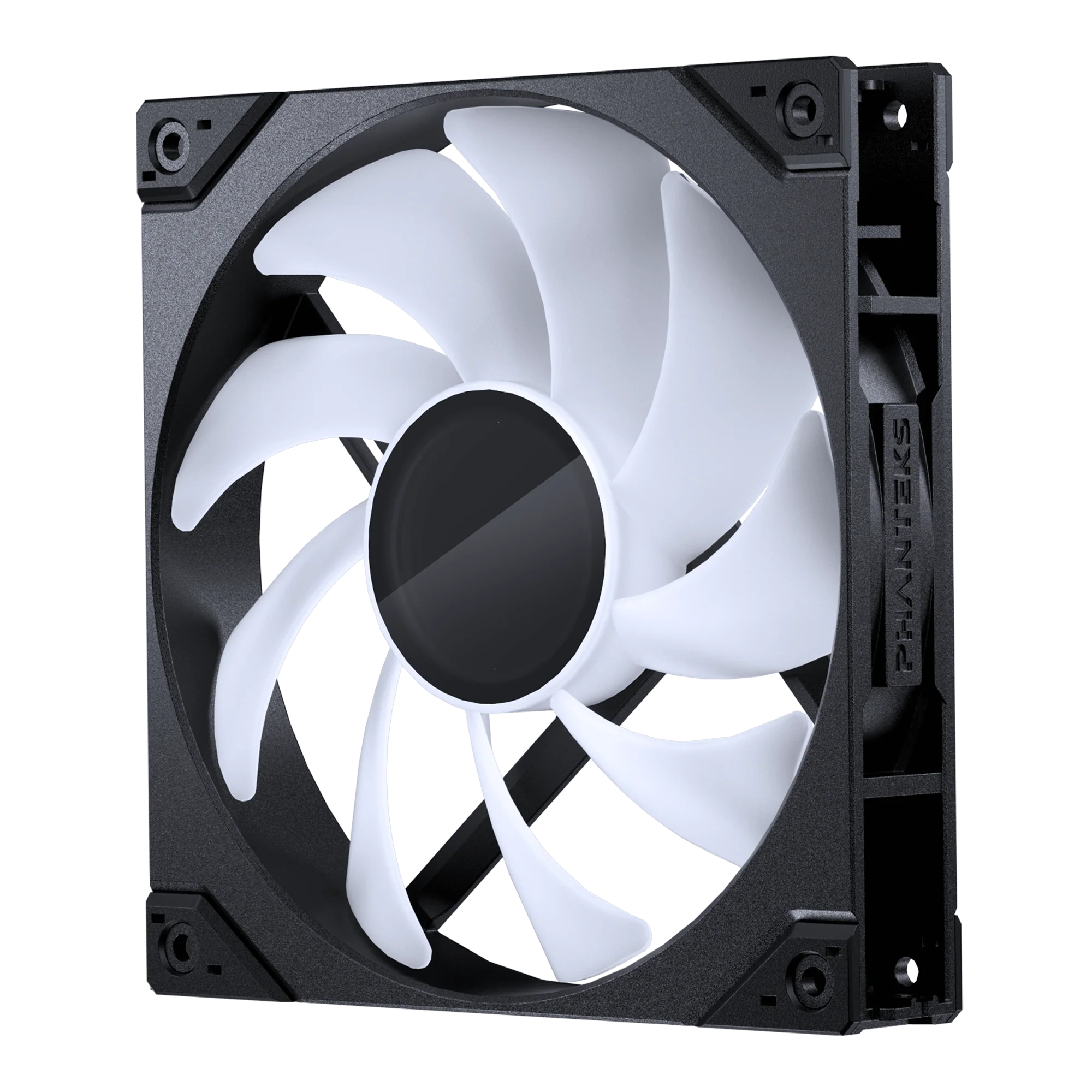

The Phanteks D30-120 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-120 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds.

The D30-120 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-120 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.

Brand	Phanteks
Model	PH-F120D30_DRGB_PWM_BK01
Type	Case Fan
Wind Direction	Regular
Color	White Matte blade / Black Fan Frame
Materials:	PBT (Polybutylene terephthalate)
Fan Size	120 x 120 x 30 mm
Bearing Type	FDB (Fluid Dynamic Bearing)
Blade Geometry	Seven Blades Design- White Matte
Rated Voltage	FAN: 12V LED: 5V
Operating Voltage Range	5~13.2V
PWM	Yes
Rated Current (Ampere)	0.15A LED:0.45A(Max)
Locked Current	Polarity Protection
Power Consumption	≦1.8W
Speed	250-2000±10% RPM
Max. Airflow	64.3 CFM
Max. Air Pressure	3.01 mm H2O
Noise Level	30.2 dB(A)
Fan Connector	4-Pin PWN
Fan Cable Length	700 mm / 27.56 in
D-RGB Connector	3-Pin JST Daisy-chain
D-RGB Cable Length	600+100 mm / 23.62+3.94 in
LED Number	30 (D-RGB)
LED Rated Voltage	DC 5V (+5V/D/GND)
LED Rated Current	Max:0.45A
MTBF (Life Expectance)	50,000hrs at 40℃
